May 29, 2012

2012 Suzuki Hayabusa


2012 Suzuki Hayabusa
2012 Suzuki Hayabusa
The Suzuki Hayabusa is undoubtedly a force to recon with when it comes to the arena of super sports motorcycles. This beauty had dominated the arena for a long time. Top of the line technology and impeccable ergonomics coupled with great handling and styling, it’s definitely a stunner.
2012 Suzuki Hayabusa
2012 Suzuki Hayabusa
It houses a 1340cc in-line 4-cylinder fuel injected, DOHC liquid-cooled power plant that comes with 16-valves and Twin Swirl Combustion Chambers. To take its performance to the ultimate level it comes with an ultra light aluminum alloy pistons with a compression ratio of 12.5:1. It comes with Suzuki's SDTV (Suzuki Dual Throttle Valve) fuel injection system with dual 12-hole, Physical Vapor Deposition (PVD) coating on the upper compression, Composite Electrochemical Material (SCEM) cylinder plating and Lightweight titanium valves coupled with Iridium spark plugs for top of the line performance not matter what the conditions are.
2012 Suzuki Hayabusa
2012 Suzuki Hayabusa
 There is no shortage of technology on the motorcycle that makes it one of its kinds on the planet. It has the drive mode selector (Suzuki Drive Mode Selector) to assist the rider to alter the engine performance according to the riding conditions and his likings. The exhaust system on Hayabusa is one of the best in the world with a large capacity catalyzer, dual triangular canisters and closed loop system.
2012 Suzuki Hayabusa
2012 Suzuki Hayabusa
Hayabusa comes with an optimized 6-speed transmission features oil spray to the 4th, 5th, and 6th gears, a lightweight and rigid twin-spar aluminum frame, fully adjustable inverted front fork, bridged aluminum alloy swingarm, and a beautiful and informative instrument cluster features four analog meters for speedometer, tachometer, fuel gauge and water temperature with a S-DMS mode indicator, gear position indicator and adjustable engine-rpm indicator.
2012 Suzuki Hayabusa
2012 Suzuki Hayabusa

2012 Hayabusa Specifications
                                                2012 HayabusaBASE              2012 Hayabusa Limited
Chassis
Brakes Front                            Disc brake, twin                                   Disc brake, twin
Brakes Rear                             Disc brake                               Disc brake
Color                                       Glass Sparkle Black                 Candy Sonoma Red
                                                                                                and Pearl Glacier White
Curb Weight                            573 lbs                                     260 kg (573 lbs)
Final Drive                               Chain, RK GB50GSV Z4,        hain, RK GB50GSV Z4,
                                                114 links                                  114 links
Fuel Tank Capacity                  5.5 gallons                               21.0 L (5.5 US gallons)
Fuel Tank Capacity CA           20.0 L (5.3 US gallons)            20.0 L (5.3 US gallons)
Ground Clearance                    120 mm (4.7 in)                      120 mm (4.7 in)
Overall Height                         1165 mm (45.9 in)                   1165 mm (45.9 in)
Overall Length                         2190 mm (86.2 in)                   2190 mm (86.2 in)
Overall Width                          735 mm (28.9 in)                     735 mm (28.9 in)
Seat Height                              805 mm (31.7 in)                     805 mm (31.7 in)
Suspension Front                     Inverted telescopic,                  Inverted telescopic,
coil spring, oil damped             coil spring, oil damped
Suspension Rear                      Link type, coil spring,               Link type, coil spring,
oil damped                               oil damped
Tires Front                               120/70ZR17 M/C (58W),         120/70ZR17 M/C (58W),
 Tubeless                                   Tubeless
Tires Rear                                190/50ZR17 M/C (73W),         190/50ZR17 M/C (73W),
Tubeless                                    Tubeless
Transmission                             6-speed constant mesh              6-speed constant mesh
Wheelbase                               1480 mm (58.3 in)                   1480 mm (58.3 in)

Engine
Bore Stroke                              81.0 mm x 65.0 mm
Compression Ratio                  12.5 : 1
Displacement                           1340cc, 4-stroke, Liquid-cooled, 4-cylinder, DOHC
Fuel System                             Suzuki Fuel Injection               Suzuki fuel injection
Ignition                                     Electronic Ignition                   Electronic ignition
(transistorized)                         (Transistorized)
Lubrication System                  Wet Sump
Starter                                      Electric                                                Electric
2012 Suzuki Hayabusa
2012 Suzuki Hayabusa


Pictures and specification curtsey Suzuki Official Website.

© All Rights Reserved
Copyright © Vikas Singh

May 24, 2012

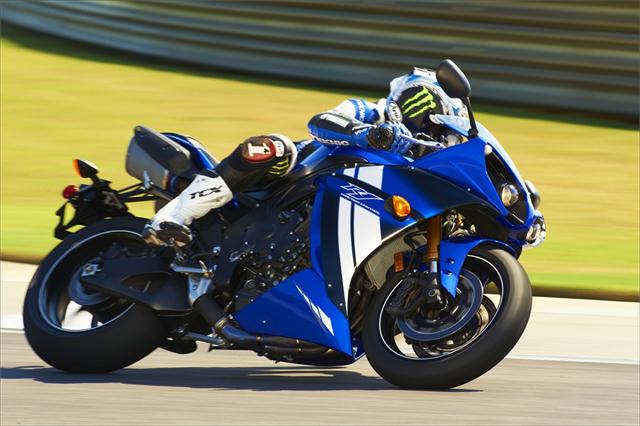

2012 Yamaha YZF R1

2012 Yamaha YZF R1
2012 Yamaha YZF R1

Since the launch, Yamaha YZF R1 is one of the most sought after super sports motorcycle that truly inherits the DNA of the MOTOGP R1. The stunningly sharp looks, ergonomics and specifications of this beauty have always attracted those who are lovers of speed and style.
2012 Yamaha YZF R1
2012 Yamaha YZF R1
2012 Yamaha YZF R1 Console
2012 Yamaha YZF R1 Console
Recently Yamaha sold some 2000 units of the World GP 50th Anniversary Edition in Pearl White and Rapid Red shades that sports the 50th Anniversary emblem on top of the fuel tank and each motorcycle was numbered displaying the production number of each unit.
2012 Yamaha YZF R1
2012 Yamaha YZF R1

2012 Yamaha YZF R1
2012 Yamaha YZF R1

R1 sports a 998cc, liquid-cooled 4-stroke DOHC 16 valves (titanium intake valves) power plant with YCC-T and YCC-I and Transistor Controlled Ignition. The 2012 Yamaha YZF R1 include some new features like Seven-level Traction Control System that’s allows the rider an edge over its competition while exiting corners.
2012 Yamaha YZF R1
2012 Yamaha YZF R1

2012 Yamaha YZF R1
2012 Yamaha YZF R1

Front suspension is 43mm inverted fork that are fully adjustable and rear suspension comes with a single shock w/piggyback reservoir which is 4-way adjustable. Front brakes are dual 310mm disc with radial-mount forged 6-piston calipers and rear with 220mm disc with single-piston caliper.
2012 Yamaha YZF R1
2012 Yamaha YZF R1

2012 Yamaha YZF R1
2012 Yamaha YZF R1

The 2012 model is fitted with an all new ECU settings which enhances the ability of the motorcycle during the low and mid rpm acceleration. To give a boost to the styling the headlight cowl design and LED lights are given a new look apart from this redesigned silencer heat guards and end caps give the rear of this beauty a more compact look.
2012 Yamaha YZF R1
2012 Yamaha YZF R1

2012 Yamaha YZF R1
2012 Yamaha YZF R1

2012 Yamaha YZF R1 Technical Specifications

Engine:                                                998cc, liquid-cooled 4-stroke DOHC 16 valves
                                                           (titanium intake valves)
Bore x Stroke:                                     78.0mm X 52.2mm
Compression Ratio:                             12.7:1
Fuel Delivery:                                      Fuel Injection with YCC-T and YCC-I
Ignition:                                               TCI (Transistor Controlled Ignition)
Transmission:                                      6-speed w/multiplate slipper clutch
Final Drive:                                         #530 O-ring chain

Chassis
Suspension / Front:                             43mm inverted fork; fully adjustable,
                                                          4.7-in travel
Suspension / Rear:                              Single shock w/piggyback reservoir; 4-way
                                                          adjustable, 4.7-in travel
Brakes / Front:                                   Dual 310mm disc; radial-mount forged
                                                          6-piston calipers
Brakes / Rear:                                    220mm disc; single-piston caliper
Tires / Front:                                      120/70ZR17
Tires / Rear:                                       190/55ZR17

Dimensions
Length :                                             81.5 in
Width:                                               28.1 in
Height :                                             44.5 in
Seat Height:                                      32.8 in
Wheelbase:                                       55.7 in
Rake (Caster Angle):                         24.0°
Trail:                                                 4.0 in
Fuel Capacity:                                  4.8 gal
Wet Weight***:                                454 lb

Other
Primary Reduction Ratio:                  65/43 (1.512)
Secondary Reduction Ratio:              47/17 (2.765)

Gear Ratio - 1st Gear 38/15 (2.533)
Gear Ratio - 2nd Gear 33/16 (2.063)
Gear Ratio - 3rd Gear 37/21 (1.762)
Gear Ratio - 4th Gear 35/23 (1.522)
Gear Ratio - 5th Gear 30/22 (1.364)
Gear Ratio - 6th Gear 33/26 (1.269)
Technical specification and Pictures curtsey: Yamaha Official Website
© All Rights Reserved
Copyright © Vikas Singh

May 18, 2012

2012 Kawasaki Ninja ZX14R



Kawasaki Ninja ZX14R
Kawasaki Ninja ZX14R
The Kawasaki Ninja ZX14R is a rage since its launch in the year 2006. This is the biggest displacement offering in the Ninja range of super sports motorcycles from Kawasaki. It’s also the most powerful Ninja ever built by the company. The 2012 model is one of the fastest production bikes on sale in the market.
Kawasaki Ninja ZX14R
Kawasaki Ninja ZX14R

Kawasaki Ninja ZX14R
Kawasaki Ninja ZX14R

Kawasaki has turned the 2012 Ninja ZX14R into a sheer powerhouse by increasing the displacement to 1441cc. It now comes with an updated fuel injection system and advanced catalyzer for lower emission. It has now reshaped combustion chambers and reinforced cam chain in the camshafts.
Kawasaki Ninja ZX14R
Kawasaki Ninja ZX14R
A major change in the 2012 Ninja ZX14R  is an all new oil jet cooling system and an improved engine compression ratio of 12.3:1 along with the 2mm thicker crankshaft main journals. These changes offer the Ninja more power in the entire rev range and make it most powerful motorcycle on the track. Apart from it, the 2012 model has a 10mm longer swingarm, 43mm inverted fork and adjustable single shock and slipper clutch and a KTRC traction control and ignition system.
Kawasaki Ninja ZX14R Digital Console and Speedometer
Kawasaki Ninja ZX14R Digital Console and Speedometer
It comes with three riding options the full power, medium power and a third option for low traction conditions which can be operated through the toggle switch mounted on the handle bar easily. Apart from the technical changes there are noticeable changes in the design of the 2012 model. The headlight and front stance is now more aggressive but the side paring styling is been retained which is a good move by the engineers and the designers.
Kawasaki Ninja ZX14R
Kawasaki Ninja ZX14R
Kawasaki Ninja ZX14R Technical Specifications
Engine:                                     Four-stroke, liquid-cooled, DOHC, four valves per cylinder,
inline-four
Displacement:                          1,441 cc
Bore x Stroke:                          84.0 x 65.0 mm
Compression Ratio:                 12.3:1
Fuel System:                            DFI® with four 44mm Mikuni throttle bodies
Ignition:                                   TCBI with Digital Advance
Transmission:                          Six-Speed
Final Drive:                              X-Ring Chain
Rake/Trail:                               23 degrees / 3.7 in.
Front Tire Size:                       120/70 ZR17
Rear Tire Size:                         190/50 ZR17
Wheelbase:                              58.3 in.
Overall length:                         85.4 in.
Overall width:                          30.3 in.
Overall height:                         46.1 in.
Ground clearance:                   4.9 in.
Seat Height:                             31.5 in.
Curb Weight:                           584.3 lbs.
Fuel Capacity:                          5.8 gal
Color:                                      Metallic Spark Black, Candy Surf Blue,
Golden Blazed Green with special graphics (SE)
Front Suspension / wheel travel:
43mm inverted cartridge fork with adjustable preload, 18-way compression and 15-way rebound damping adjustment / 4.6 in.

Rear Suspension / wheel travel:
Bottom-link Uni-Trak® and gas-charged shock with adjustable preload, stepless rebound and compression damping adjustments, adjustable ride height / 4.9 in.

Front Brakes:                           Dual semi-floating 310 mm petal discs with dual radial-mounted
                                                   four-piston calipers
Rear Brakes:                            Single 250mm petal disc with twin-piston caliper

Kawasaki Ninja ZX14R
Kawasaki Ninja ZX14R
